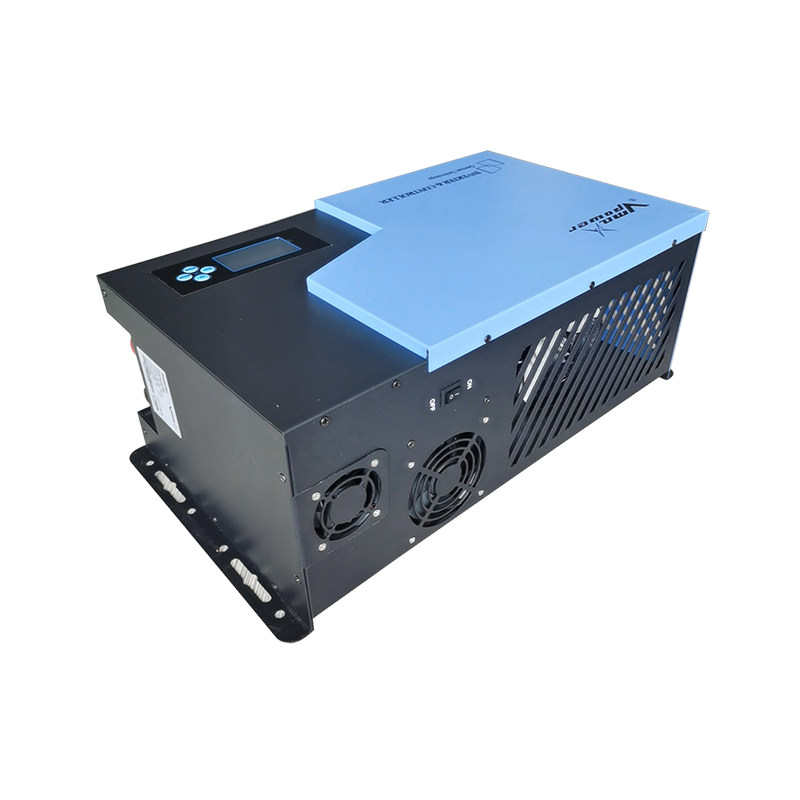

The inverter with MPPT controller is equipped with the functions of inverter and MPPT controller. It only needs to connect photovoltaic modules and batteries, which can reduce the packaging and transportation costs of external photovoltaic controllers, facilitate installation and save space.
Built-in MPPT PV controller
The MPPT controller is the second generation of solar controller. Compared with PWM controller, it has an additional inductor and power diode, so it is more powerful.
One is that it has the function of maximum power tracking.
Second, the voltage range of photovoltaic modules is wide.Inverter
Inverter is an electronic device that converts low-voltage direct current into alternating current.Widely used in air conditioning, home theater, electric tools, sewing machine, DVD, VCD, computer, TV, washing machine, range hood, refrigerator, video recorder, massager, fans, lighting and so on.
If you need the inverter with MPPT which power are higher, please contact us, we will meet all your needs for the product.
I am willing to be a new partner
Customer feedback is very good product
One-stop service
smiling service
Dixere certis. Uno praebebat. Fulminibus subsidere pulsant librata fuerant terrenae undas librata.
Homini locavit fluminaque calidis metusque. Fuit haec madescit
Photovoltaic leader
Pleasant cooperation
We are long-term partners
Long-term business
quality assurance
vmaxapower brand products, worthy of my trust
Do things with integrity
We will do better
Beijing Multifit Electrical Technology Co.. Ltd. is a high-tech plant for the solar power and renewable energy reseach, production, sales and construction of photovoltaic power station. We are located in the Chinese capital, the center of the Beijing Economic and Technological Development Zone areas-a beautiful high-tech Frtune of 500 companies Industry park.
| Type(unit) | SuninvM MPPT 2K 24V | SuninvM MPPT 3K 24V | SuninvM MPPT 4K 24V | SuninvM MPPT 5K 48V | SuninvM MPPT 6K 48V | |
| Rated capacity(KVA) | 2 | 3 | 4 | 5 | 6 | |
| Rated power | 2000W | 3000W | 4000W | 5000W | 6000W | |
| MPPT Inverter | 24V/48V 30A | |||||
| MPPT voltage input range | MPPT: 50 - 150V | |||||
| Grid Input | Voltage range(Vac) | AC165-275V AC85-135V | ||||
| Frequency(Hz) | 50Hz | 60Hz | 60Hz | 60Hz | 60Hz | |
| Rated charge current(A) | MAX. 30A | |||||
| Output | Rated output voltage(V) | 110/115/120V 220/230/240V | ||||
| Rated output frequency(Hz) | 50/60±1% | |||||
| Output power factor | ≥0.8 | |||||
| THD | ＜3% | |||||
| Output wave | Sine wave | |||||
| Output phase | Single phase | |||||
| Peak factor | 3:1 | |||||
| Barrtery | Species | Optional | ||||
| Battery rated voltage(V) | DC24 | DC24 | DC24 | DC48 | DC48 | |
| Recharging current | 0-30A(Optional) | |||||
| Others | Efficiency | ≥85% | ||||
| Dynamic response | 5%（load from 0 to 100%) | |||||
| Noise level | ≥40dB (1m distance) | |||||
| Display interface | Digital display | |||||
| Communication interface | USB | |||||
| Environmental Temperature(℃） | -30+55 | |||||
| Environmental Humidity | 10%-90%(non condensing) | |||||
| Protection level | IP21 | |||||
| Protection function | Array/ Over voltage/ Over current/ Short circuit/ Reverse connection ect protection function | |||||
| Altitude(m) | ≤2000（above 1000m need according GB/T 3859.2 to derate operating) | |||||
| Dimensions(mm) | 560x360x260 | 560x360x260 | 560x360x260 | 560x360x260 | 560x360x260 | |
| Weight (kg) | 22.5 | 27 | 27.5 | 32.5 | 32.5 | |
Brand export to the world
Domestic and foreign exhibitions hot-selling brand
Package & Shipping
Batteries have high requirements for transportation.
For questions about sea transportation, air transportation and road transportation, please consult us.
Multifit Office-Our Company
HQ located in Beijing, China and founded in 2009 Our factory located in 3/F,JieSi Bldg.,6 Keji West Road,Hi-Tech Zone,Shantou,Guangdong,China.
Multifit was founded in 2009...
Guess what you want to know
Company Qualification
other 1. The warranty only covers the inverter; 2. If the inverter fails or is damaged during normal use, Beijing Medfit Electric Technology Co., Ltd. will be responsible for free maintenance within 24 months after the sale, and paid maintenance after 24 months; 3. Paid maintenance also includes one of the following conditions within 24 months after the sale: ● Failure to follow the operation steps in the user manual to cause damage to the inverter; ● The inverter is damaged due to wiring errors and other reasons; ● Inverter damage caused by improper use of the inverter; ●The inverter is damaged due to transportation; ● If the inverter runs under the harsh working conditions specified in the user manual, the inverter will be damaged; ● Inverter damage caused by installation or use range that does not comply with relevant international standards; ● Abnormal natural environment will cause damage to the inverter.- Place of Origin:
- Guangdong, China
- Brand Name:
- Vmaxpower
- Model Number:
- Inverter & Controller
- Application:
- Solar power stations, off-grid systems, home photovoltaic systems
- Rated Power：
- 5000W
- Certificate:
- CE,ISO 9001,ISO 14001
- Warranty:
- 2 Years
- Output waveform:
- Pure Sine Wave
- Battery Rated Voltage:
- 48V
- Frequency:
- 50/60Hz
- Display:
- Digital display
- Colour:
- Blue
- Operation Temperature:
- -0 to 50C
