Overview
Quick Details
- Machine Type:
- Other
- Applicable Industries:
- Solar panel cleaning
- After Warranty Service:
- Video technical support, Online support, Spare parts
- Local Service Location:
- None
- Showroom Location:
- None
- Video outgoing-inspection:
- Not Available
- Machinery Test Report:
- Provided
- Marketing Type:
- New Product 2020
- Warranty of core components:
- 2 years
- Core Components:
- Intelligent electronic control system
- Condition:
- New
- Place of Origin:
- Guangdong, China
- Brand Name:
- MULTIFIT
- Fuel:
- Electric
- Certification:
- ce
- Use:
- solar panel cleaning
- Cleaning Process:
- Cold Water Cleaning, Dry Cleaning
- Cleaning Type:
- Auto brush, Industrial Ultrasonic Cleaner
- Material:
- solar panel, Metal / Coil
- Generator Power:
- 90W
- Dimension(L*W*H):
- See details
- Warranty:
- 2 years, 1 Year
- After-sales Service Provided:
- Video technical support
- Product name:

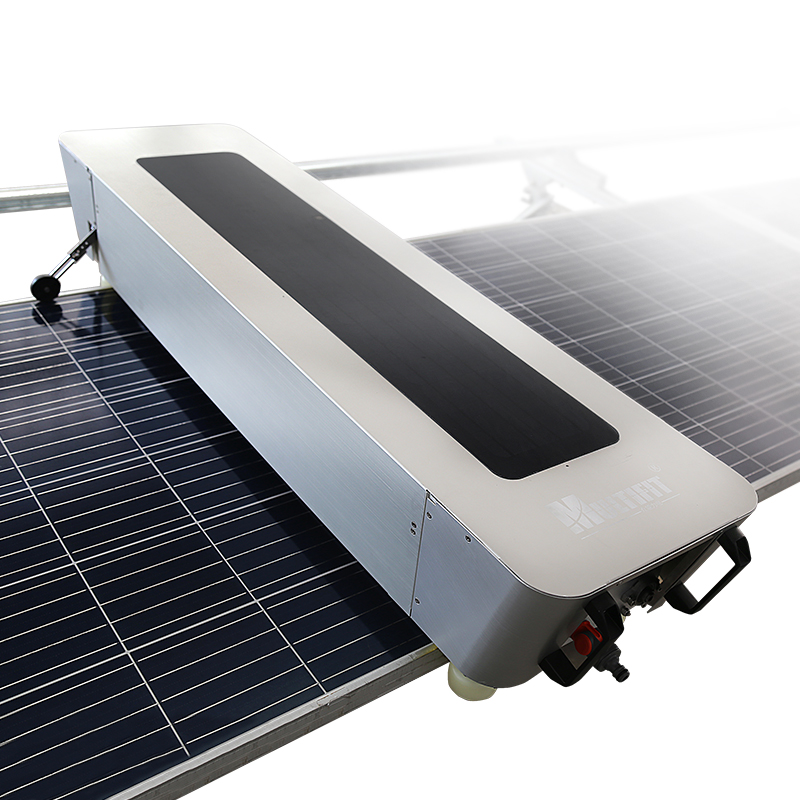

- 1650mm*2 solar panel cleaning robot
- Battery Capacity(Ah):
- 24V/10Ah(MULR*2 is 20AH)
- Solar panel:
- 40W
- Protection:
- IP65
- Weight:
- 40kg
- Installation Site:
- solar power plant
Product Features 1. Excellent performance: lithium battery, brushless motor, durable. 2. Automatic operation: automatic start and stop, automatic return, adaptive. 3. Light weight: no more than 40kg, easy to handle. 4. Long range: 800M. 5. Efficient cleaning: special brush, cleaner, single machine can clean 1.2MWp per day. 6. High cost performance: low cost, fast return. 7. Modular design: widely applicable to a variety of array layout, easy to install. 8. The system is equipped with water cleaning into two modes of anhydrous cleaning. 9. Own power supply system: self-charging, convenient and efficient, solar power charging, independent power supply, battery life of 6-8 hours. Accessory
Product Details The second generation cleaning robot has more advantages than the robots on the market in terms of performance, product design, intelligent control, etc., such as portability, long life, intelligent APP controller, and easy to disassemble, install, adjust and maintain brushes.Solar Panel 260Wp~300Wp（Single board*2）
| Model | Power | Vmp V | Imp A | Voc V | Isc A | Size(mm) |
| MUL-260M | 260Wp | 30.13 | 8.63 | 36.16 | 9.41 | 1650*990*35 |
| MUL-265M | 265Wp | 30.24 | 8.77 | 36.29 | 9.55 | 1650*990*35 |
| MUL-270M | 270Wp | 30.32 | 8.91 | 36.38 | 9.71 | 1650*990*35 |
| MUL-275M | 275Wp | 30.44 | 9.04 | 36.53 | 9.85 | 1650*990*35 |
| MUL-280M | 280Wp | 30.51 | 9.18 | 36.61 | 10 | 1650*990*35 |
| MUL-285M | 285Wp | 30.64 | 9.31 | 36.77 | 10.14 | 1650*990*35 |
| MUL-290M | 290Wp | 30.72 | 9.44 | 36.84 | 10.29 | 1650*990*35 |
| MUL-295M | 295Wp | 30.82 | 9.57 | 36.98 | 10.43 | 1650*990*35 |
| MUL-300M | 300Wp | 30.91 | 9.71 | 37.09 | 10.58 | 1650*990*35 |
Package & Shipping
Batteries have high requirements for transportation.
For questions about sea transportation, air transportation and road transportation, please consult us.
Multifit Office-Our Company
HQ located in Beijing, China and founded in 2009 Our factory located in 3/F,JieSi Bldg.,6 Keji West Road,Hi-Tech Zone,Shantou,Guangdong,China.
Multifit was founded in 2009...
Guess what you want to know
Company Qualification
Internet of things technology application: independent control, grouping, automatic cleaning
1min disassembly and assembly of brushes: applicable to various arrangement arrays and various power stations.
Intelligent control: Mini APP control by mobile, automatic cleaning time and cleaning mode can be set
Lightweight equipment ≈23 kg,The whole machine is about 30kg, which is more than 30% lighter than similar products, and it is convenient to carry.Solar power system: self-charging-comes with a solar power system, convenient and efficient, can last 8-10 hours1min disassembly and assembly of brushes: applicable to various arrangement arrays and various power stations.When the brush wears out, the cleaning ability decreases. You can adjust the brush downward to increase the cleaning abilityModel MULR1650-2Weight of machine 40kgModule Length(mm) 1650(1640)*2Width of machine 340mmObstacle crossing ability 20 mmHeight of machine 300mmTraveling distance 0-800mWater Used Per Hour 270L/H (0.3mpa)Traveling speed 15-20 m/minSolar Panel 40wGenerator Power 90WBattery Capacity 24V/10Ah(MULR*2 is 20AH)Warranty The solar panel cleaning robot has a 2-year limited product warranty. Can be customized according to customer needs (solar panel size)Working Time 8-10 HoursAmbient Temperature ～40℃-70℃Cleaning Mode Dry CleaningCleaning way One time/Many times/The RubbingOther special functions Speed control of forward and reverseOptional Configuration The bridge device Water washing device The wireless remote controller/Mini APP of WechatWith it, I can reduce the number of employees. With it, I don't need large equipment to clean the solar panel. APP controls the solar cleaning robot. It can also scrub dirty places. It is very convenient and I like it.Traveling speed 15-20(m/min)Length of machine 3690mm
